Seamless and welded buttweld elbows, tees, reducers, stub ends, caps and bends to ASME B16.9.
Overview

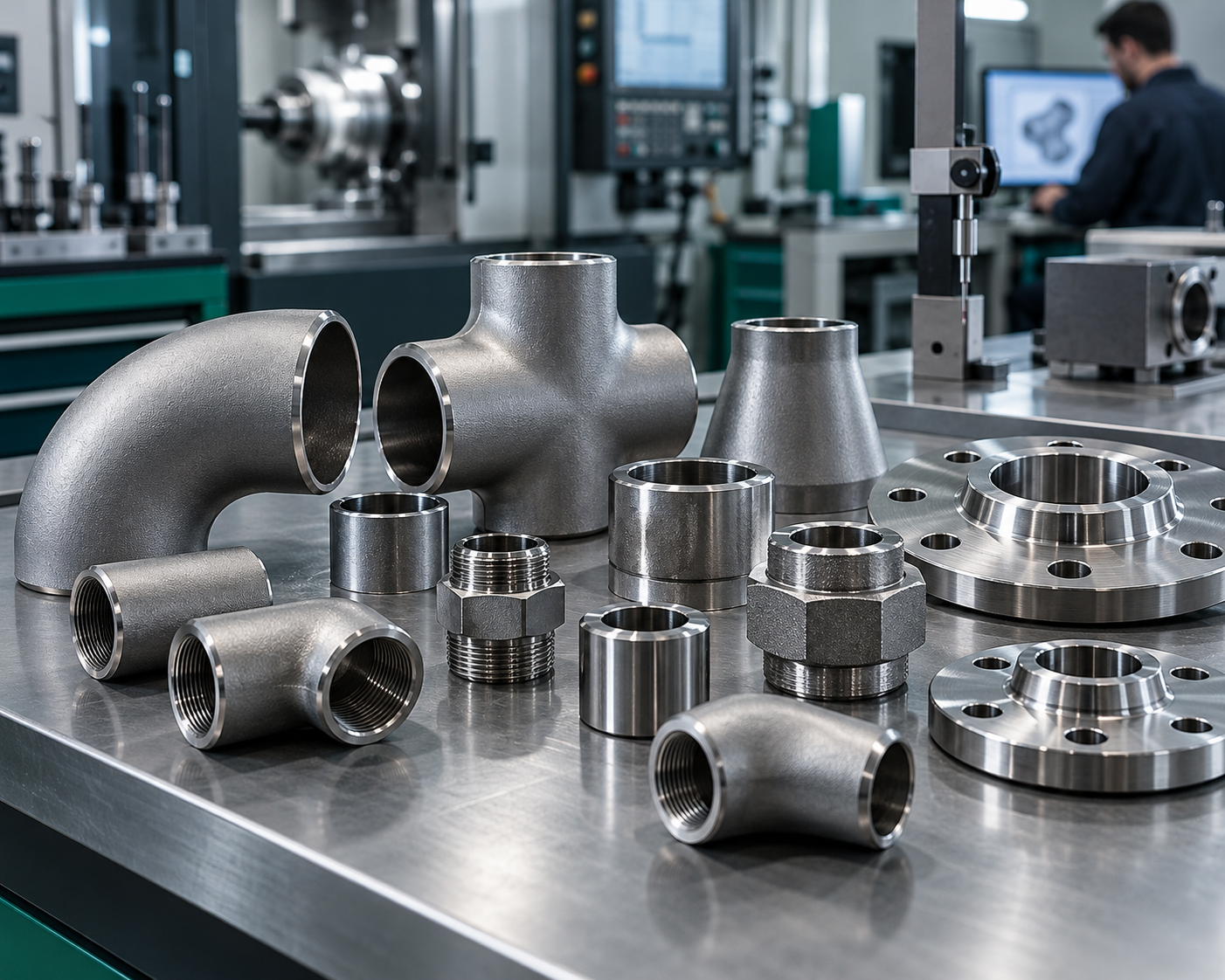

Buttweld fittings join pipes by welding the bevelled end of the fitting straight onto the pipe. The weld becomes part of the line, so the joint is as strong as the pipe itself, with a smooth bore and no leak path — the standard choice for process, oil & gas, chemical and power piping.
Vedant Steel and Tubes Industries supplies seamless and welded buttweld fittings from 1/2" to 48" in schedules 5S to XXS — long and short radius elbows, equal and reducing tees, crosses, concentric and eccentric reducers, long and short stub ends, caps and pipe bends — in stainless, duplex, alloy, carbon steel and nickel alloys, inspected before dispatch.
Specifications
Standard sizes are held in stock. Non-standard sizes and lengths are supplied to order.
Grades Available
We supply every grade below in common sizes and forms, with mill test certificates on request.
Full Grade Reference
| Stainless Steel | ASTM / ASME SA 403 GR WP "S" / "W" / "WX" — 304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H |
|---|---|
| Duplex Steel | ASTM / ASME SA 815, UNS No. — S31803, S32205, S32550, S32750, S32760 |
| Carbon Steel | ASTM / ASME A234 WPB, WPC, ASTM / ASME A860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
|---|---|
| Alloy Steel | ASTM / ASME A234 WP1, WP5, WP9, WP11, WP12, WP22, WP23, WP91 |
| Nickel Alloy |
|
|---|---|
| Copper Alloy |
|
Types

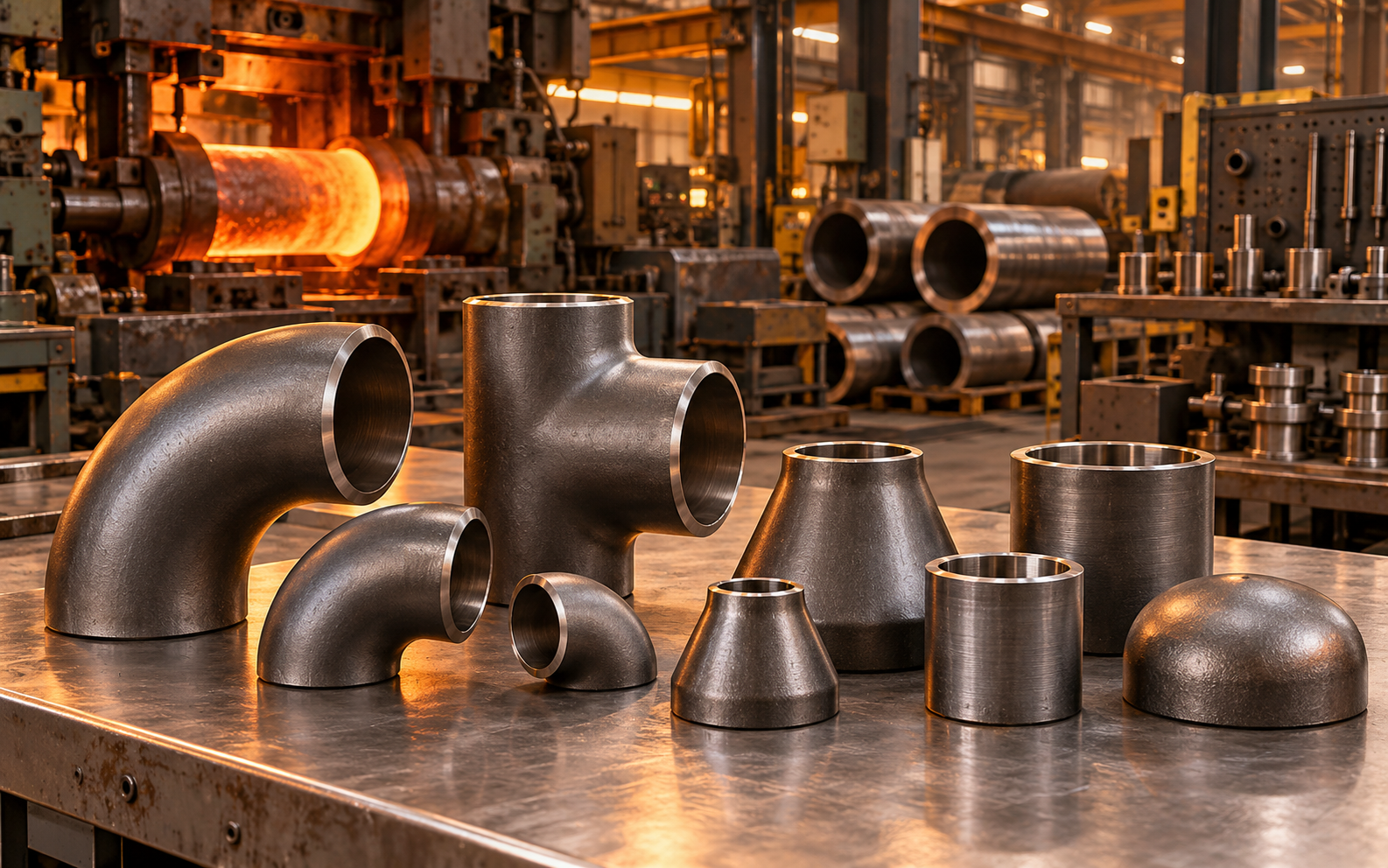

Hot-formed from seamless pipe, so there is no weld seam anywhere on the body. The wall stays uniform and the fitting carries higher pressure — the usual choice for critical oil, gas, petrochemical and high-temperature lines, normally up to 24".

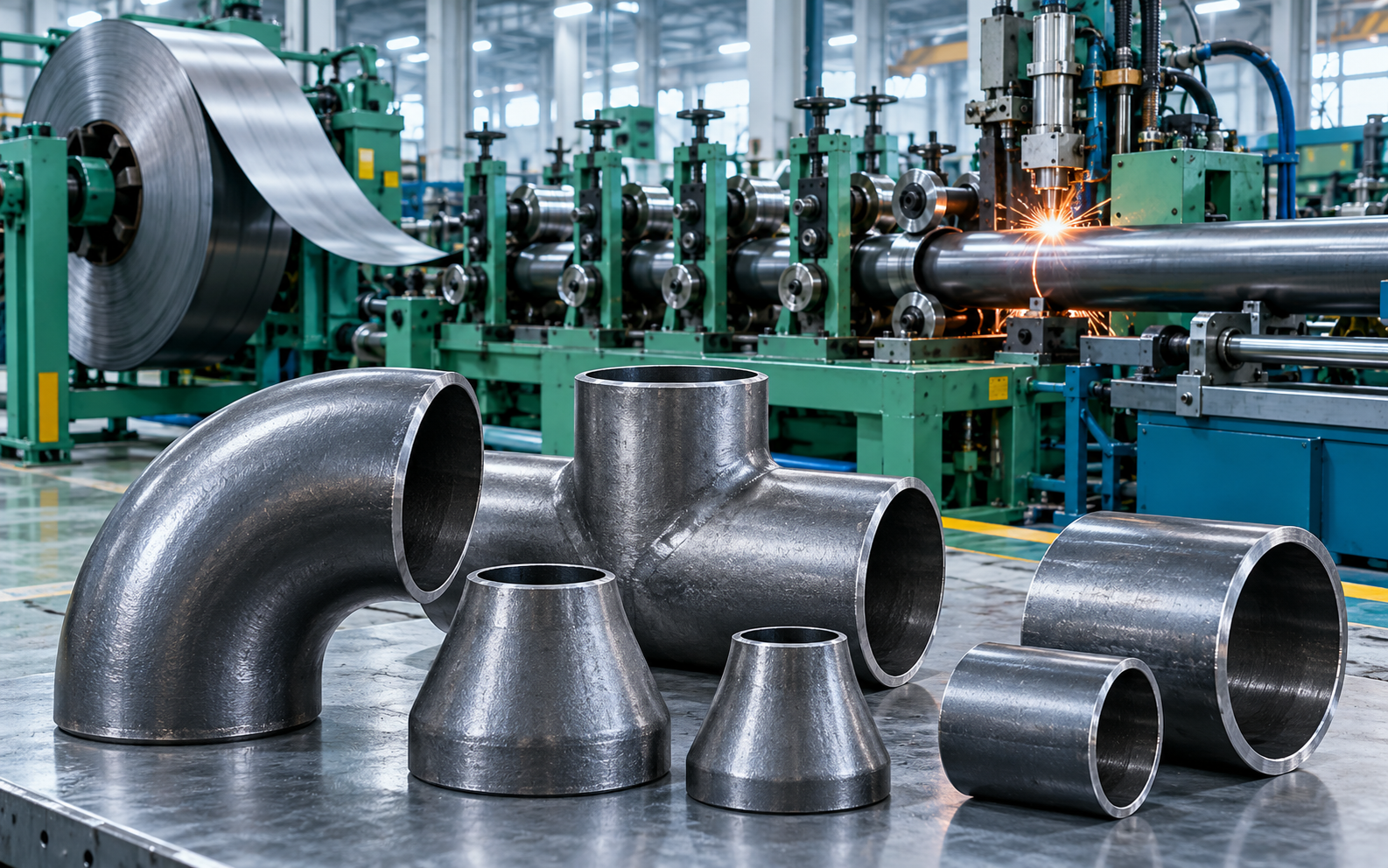

Formed from plate or welded pipe and joined along a seam, then normalised and radiographed. Used for larger sizes up to 48" and for low and medium pressure lines such as water, utility, HVAC and general plant piping, at a lower cost.
Request a Quote
Share grade, size and quantity. Our team will reply with price and availability, usually within one business day.
Every grade. Every bend. On time.
Elbows, tees, reducers, stub ends and caps from 1/2" to 48" in seamless and welded forms — stainless, duplex, alloy and carbon steel, inspected before dispatch.
