Products
Weld neck, slip-on, blind, socket weld and threaded flanges for leak-tight pressure joints.
Overview

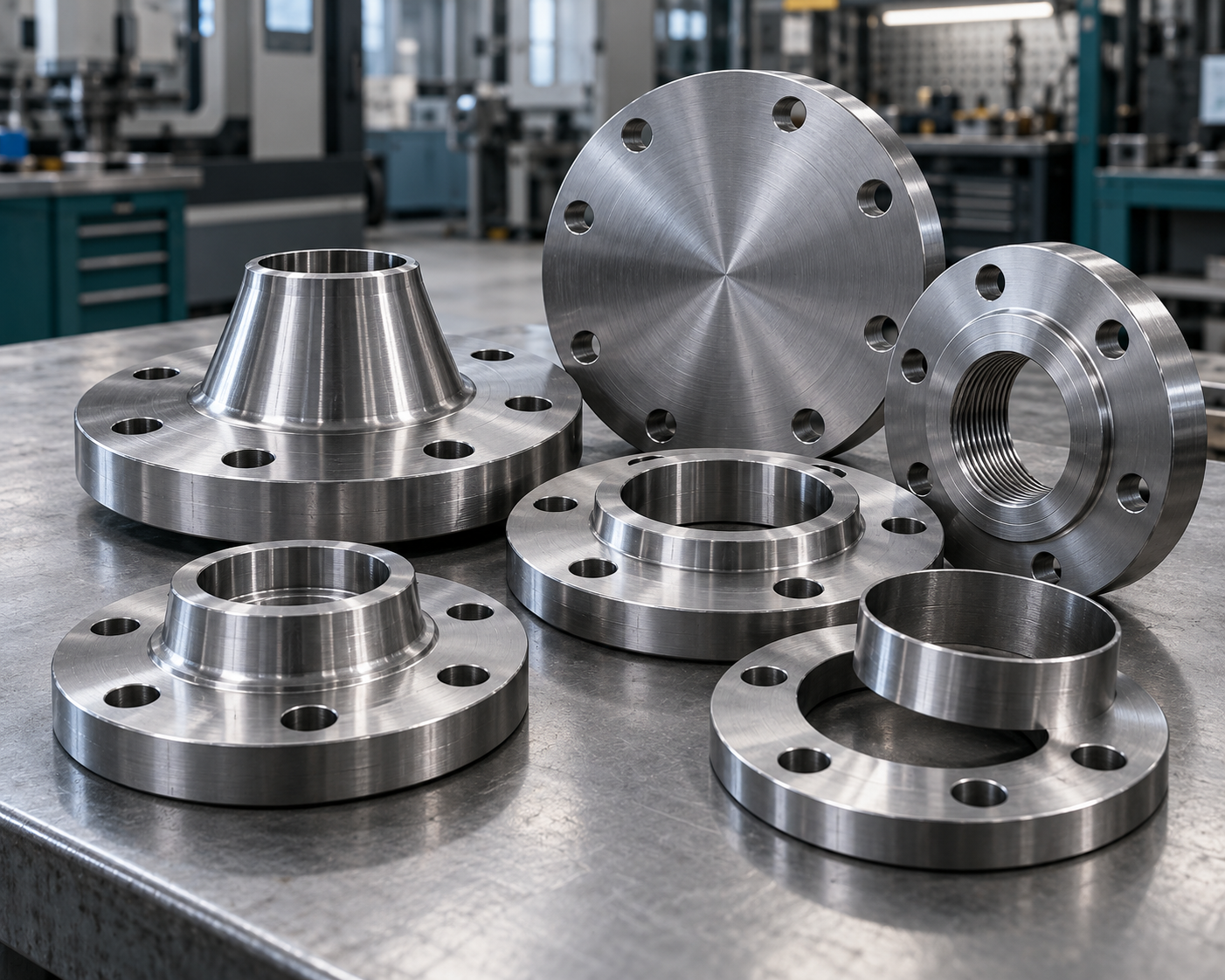

Vedant Steel and Tubes Industries supplies flanges from 15 NB to 600 NB across every major pressure class, made and sourced to international quality and safety standards.
Alongside flanges we stock the matching pipe fittings — elbows, tees, reducers, stub ends, nipples, unions and couplings — for petroleum, chemical, food, instrumentation and industrial plants.
Specifications
Standard sizes are held in stock. Non-standard sizes and lengths are supplied to order.
Grades Available
We supply every grade below in common sizes and forms, with mill test certificates on request.
Full Grade Reference
| Stainless Steel | ASTM / ASME SA 182 F — 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H |
|---|---|
| Duplex Steel | ASTM / ASME SA 182 F — 44, 45, 51, 53, 55, 60, 61 |
| Carbon Steel | ASTM / ASME A105, ASTM / ASME A350 LF2 |
|---|---|
| Alloy Steel | ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91 |
| Nickel Alloy |
|
|---|---|
| Copper Alloy |
|
Types
Has a long tapered hub that is butt-welded to the pipe, so stress passes smoothly from flange to pipe instead of building up at the base. Specified for high pressure, high temperature and sub-zero service where a leak-free joint is critical.
Slides over the pipe end and is fillet-welded inside and outside. Easier to align and cheaper to fit than a weld neck, it is widely used on low-pressure lines and general piping systems.
Request a Quote
Share grade, size and quantity. Our team will reply with price and availability, usually within one business day.
Every class. Every grade. On time.
From 15 NB to 600 NB in slip on, socket weld, blind and weld neck forms across all major pressure classes — inspected before dispatch.
